Craymin’s server/networking rack has been designed with configuration, effectiveness, stable and durable in mind.

This 19-inch rack is a standardized frame or enclosure used to house electronic equipment modules, primarily in data centers, server rooms, and telecommunications facilities. It remains a cornerstone of modern infrastructure, offering a reliable and scalable solution for organizing and protecting critical equipment.

Standard: ANSI/EIA RS-310-D, IEC297-2,DIN41494:PART1,DIN41494:PART7, GB/T3047.2-92, ETSI

Material: SPCC cold rolled steel, ensuring stability and protection for sensitive equipment.

Thickness: Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm

Colors: RAL9004 or RAL7035

IP Degree: IP20

Loading capacity: 1000KG

Key Features:

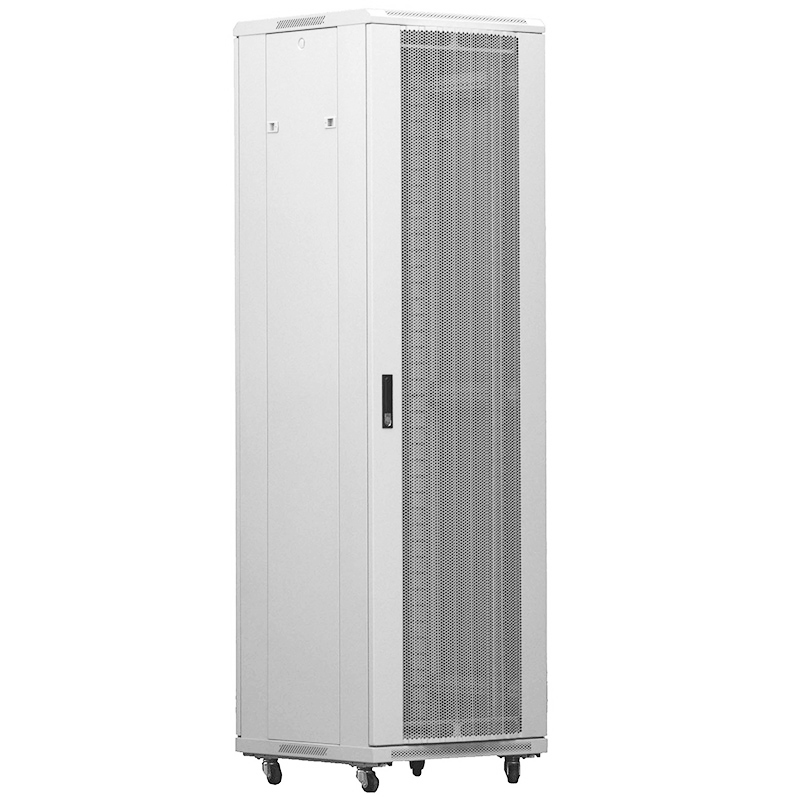

ARC & FOLDING hexagonal perforated front door and Flat sheet hexagonal perforated rear door

Easy removable front/rear/side doors

Closable cable entry on both top cover and bottom cover

Adjustable castors and leveling feet to provide easy maneuverability

Both flat packed and assembled for customer’s options, around 1/3 flat packed volume against assembled package

Standardized Dimensions:

Width: 600mm or 800mm -19 inches (482.6 mm) between mounting rails.

Height: Measured in rack units (U), where 1U = 1.75 inches (44.45 mm). Common heights include 18U,22U,27U,32U, 37U,42U and 47U

Depth: Varies (e.g., 600mm, 800mm, 1000mm) to accommodate different equipment sizes.

Versatility:

Compatible with a wide range of equipment, including servers, switches, routers, power distribution units (PDUs), and audio/video gear.

Supports both front-mount and rear-mount installations.

Vertical Cable Management (800mm width available):

Features built-in cable management systems to organize and route cables neatly, improving airflow and reducing clutter.

Cabinets accessories options:

Includes fixed shelf, sliding shelf, heavy duty shelf, cantilever shelf, PDU, fans, or ventilation panels to maintain optimal airflow and prevent overheating.

Security:

Lockable doors and side panels to protect equipment from unauthorized access.

Mobility:

Optional casters or wheels for easy relocation of the rack.

Applications:

Data centers and server rooms

Telecommunications and networking installations

Audio/visual setups in studios and event venues

 Industrial control systems

Local area Networking(LAN) cabling and hardware

The housing of security
