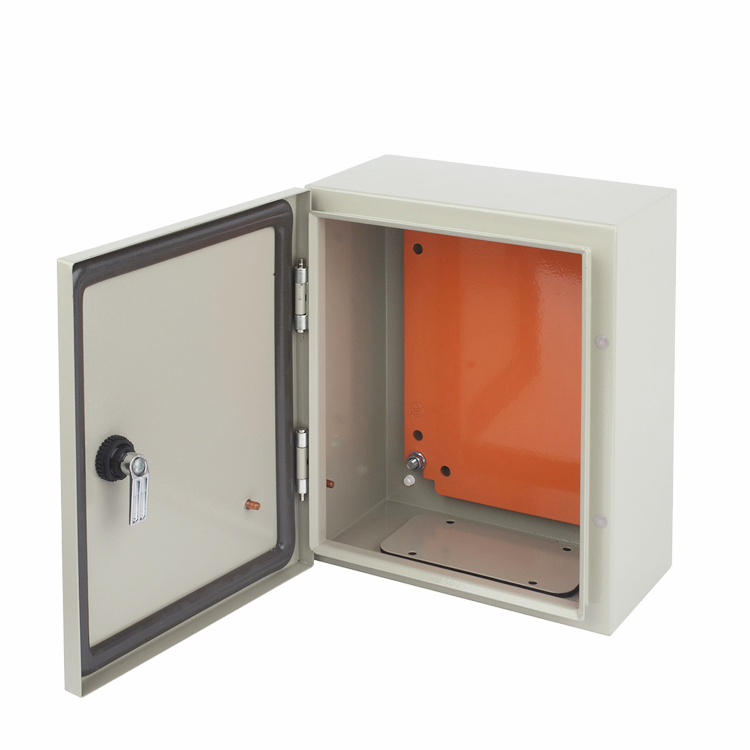

CM Distribution Box
Distribution box with RAL2000 or Galvanized mounting panel
Key Features:
Cold rolled steel welded frame with strong structure ;
All-round polyurethane gasket in the door with good protection ;
Door can be open from left or right Door can be turned to 110 degrees with hinge ;
Adjustable mounting panel, painted in RAL2000(orange) or in Zinc by customers' options ;
M8 earth pole is mounted on the body, door and the mounting panel;
Description
Package Information
Inquiry
Color: RAL7035 (Gray)
Surface Finish: degreasing, pickling, phosphoric, powder coated
Material: SPCC cold rolled steel

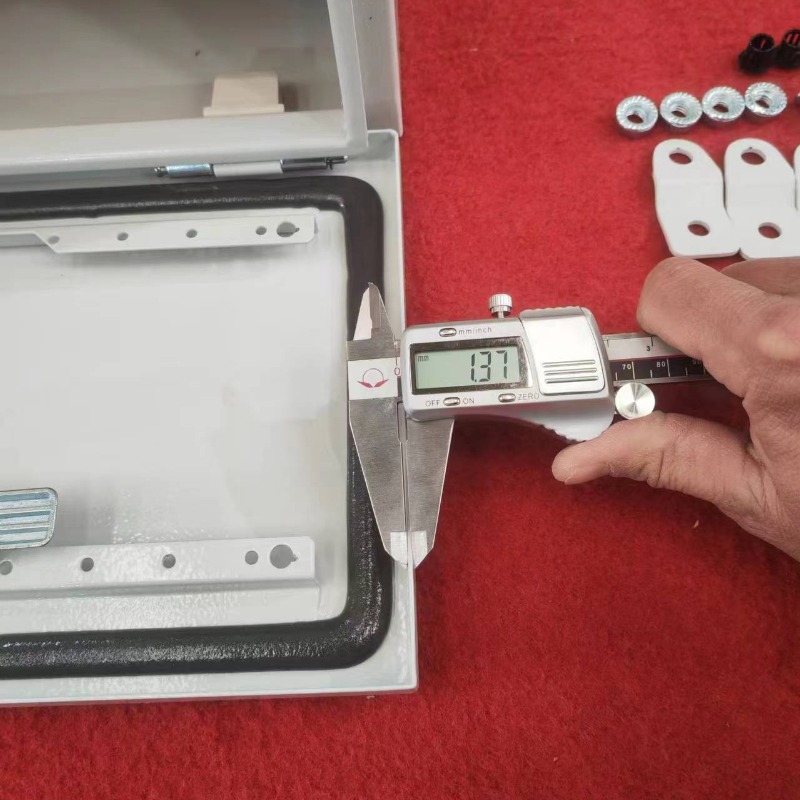

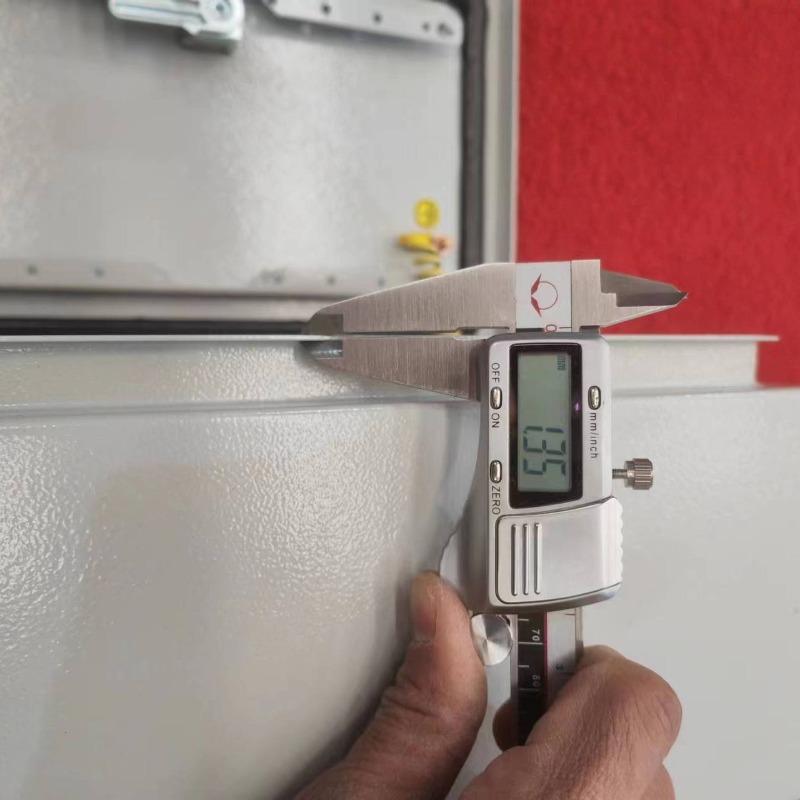

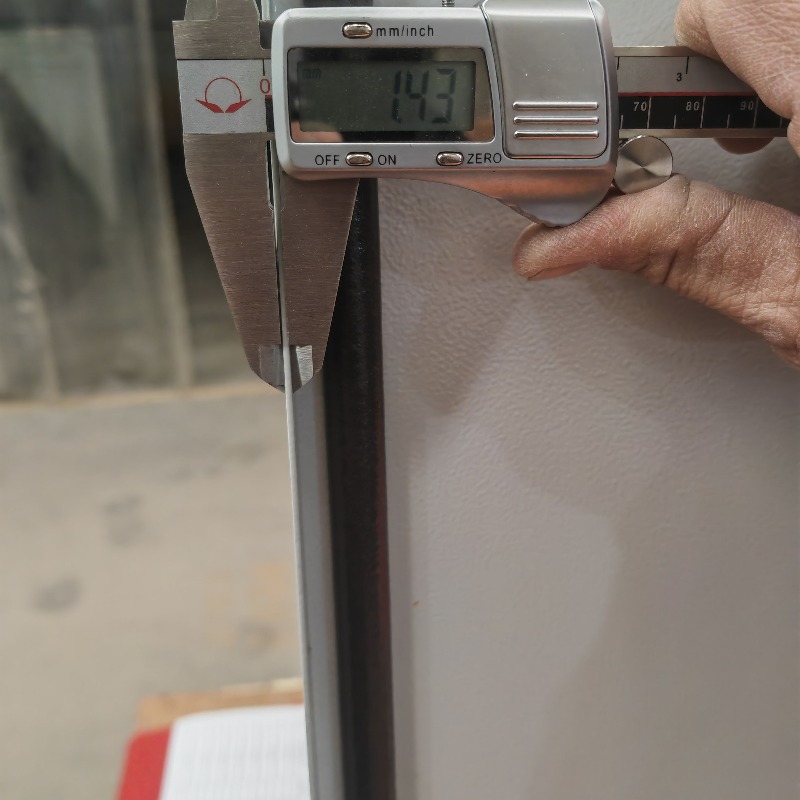

Thickness: mounting panel 1.5mm till size CM806020 then 2.0mm; Enclosure door & body: 1.2mm till size CM806020 then 1.5mm
Degree of Protection: IP66
Standard: IEC60529, EN60529/10.91 and GB4208-93 Standard
Against mechanical impacts: IK 10
Standard collocation:
1.Body
2.Door
3.Mounting panel
4.Gland plate
5.Lock
6.Sealing gasket

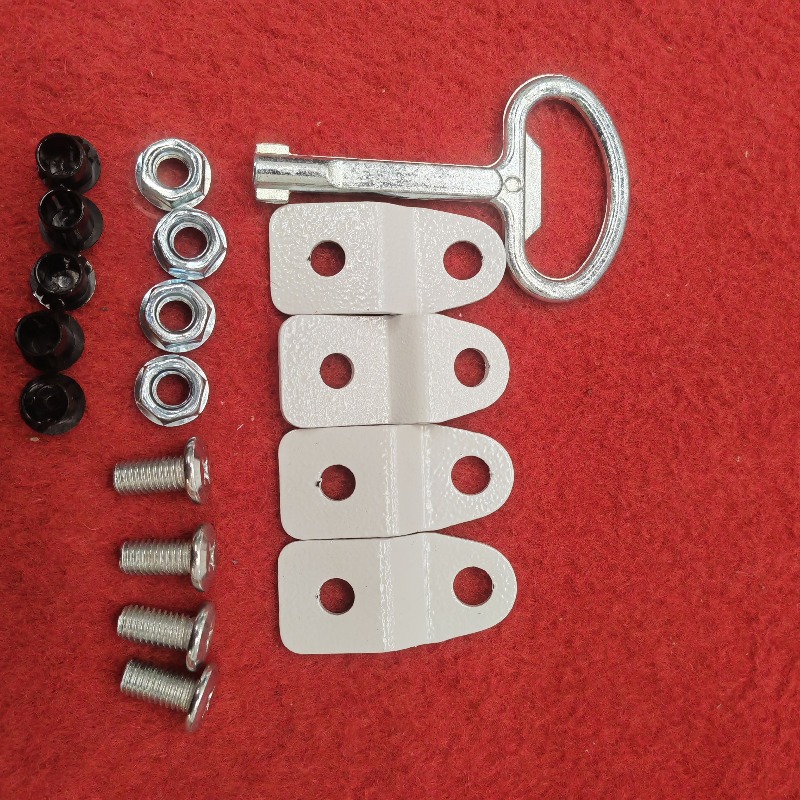

7.fixing accessories
